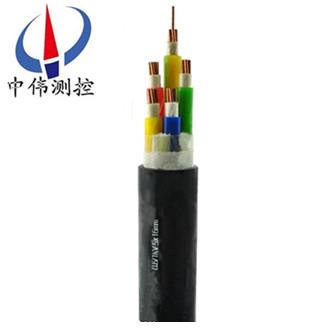

Irradiation crosslinking polyethylene insulated cable (wire)
Irradiation crosslinking polyethylene insulated cables (wires) flame retardant products superior per…
Description：
One, the cable's brief introduction:
Irradiation crosslinking polyethylene insulated cables (wires) flame retardant products superior performance, little smoke during burning, no corrosive gas escape, widely used in nuclear power station, subway station, telephone system and computer control center, high-rise buildings, hotels, radio and television, important military facilities, oil platform, etc., as well as personnel is relatively concentrated, low air density.
Second, the irradiation crosslinking polyethylene insulated cable (wire) using features:
1. Don't delay flammability and flame retardancy.
2. The little amount of smoke during burning, do not produce poisonous gas, no corrosive gas.
3. Has a certain mechanical electrical and physical properties, and can satisfy the use requirement of the cable.
Three, product standards:
TICW/06—2009 YD/T 1173 GB9330-88 、IEC601034。
Four, irradiation crosslinking polyethylene insulated cable (wire) model name:
1.Low smoke zero halogen flame retardant power cable
model | The name of the |
YE | Polyethylene insulation, low smoke zero halogen flame retardant polyolefin sheathed power cable |
YJE | Irradiation crosslinking polyethylene insulation, low smoke zero halogen flame retardant polyolefin sheathed power cable |
YWE | Low smoke zero halogen flame retardant polyolefin insulation, low smoke zero halogen flame retardant polyolefin sheathed power cable |
YJWE | Irradiation crosslinking of low smoke zero halogen flame retardant polyolefin insulation, low smoke zero halogen flame retardant polyolefin sheathed power cable |
YE23 | Polyethylene insulation tape armored low smoke zero halogen flame retardant polyolefin sheathed power cable |
YJE23 | Irradiation crosslinking polyethylene insulation steel tape armoured with low smoke zero halogen flame retardant polyolefin sheathed power cable |
YWE23 | Low smoke zero halogen flame retardant polyolefin insulation tape armored low smoke zero halogen flame retardant polyolefin sheathed power cable |
YJWE23 | Irradiation crosslinking of low smoke zero halogen flame retardant polyolefin insulation tape armored low smoke zero halogen flame retardant polyolefin sheathed power cable |
2.Low smoke zero halogen flame retardant computer cable
model | The name of the |
DJYY(R)P | Low smoke zero halogen flame retardant polyolefin insulated and sheathed wire weaving total screen computer shielded cable (soft) |
DJYPY(R) | Low smoke zero halogen flame retardant polyolefin insulated and sheathed wire woven split screen computer shielded cable (soft) |
DJYPY(R)P | Low smoke zero halogen flame retardant polyolefin insulated and sheathed wire woven split screen a total screen computer shielded cable (soft) |
DJYY(R)P2 | Low smoke zero halogen flame retardant polyolefin insulated and sheathed copper tape around the total screen computer screen (soft) cables |
DJYP2Y(R) | Low smoke zero halogen flame retardant polyolefin insulated and sheathed copper tape around the package split screen computer shielded cable (soft) |
DJYP2Y(R)P2 | Low smoke zero halogen flame retardant polyolefin insulated and sheathed copper tape around the package split screen a total screen computer shielded cable (soft) |
DJYDYD(R)P3 | Low smoke zero halogen flame retardant polyolefin insulated and sheathed aluminum-plastic composite belt around the total screen computer screen (soft) cables |
DJYDP3YD(R) | Low smoke zero halogen flame retardant polyolefin insulated and sheathed aluminum-plastic composite belt winding and split screen computer shielded cable (soft) |
DJYDP3YD(R)P3 | Low smoke zero halogen flame retardant polyolefin insulated and sheathed aluminum-plastic composite belt winding and split screen a total screen computer shielded cable (soft) |
Steel tape armoured cable plus 22 after model, shielding can be used tin plated copper wire, the basic model is slightly | |
3.Low smoke zero halogen flame retardant control cable
model | The name of the |
KYY | Copper low smoke zero halogen flame retardant polyolefin insulated and sheathed control cable |
KYYR | Copper low smoke zero halogen flame retardant polyolefin insulated and sheathed control cable |
KYYP | Copper low smoke zero halogen flame retardant polyolefin insulated and sheathed copper wire braided shielding control cable |
KYYRP | Copper low smoke zero halogen flame retardant polyolefin insulated and sheathed wire braided shielding control cable |
KYYP2 | Copper low smoke zero halogen flame retardant polyolefin insulated and sheathed copper tape screened control cable |
KYYRP2 | Copper low smoke zero halogen flame retardant polyolefin insulated and sheathed copper tape screened control flexible cable |
KYY-22 | Copper low smoke zero halogen flame retardant polyolefin insulation and sheath steel tape armoured control cable |
KYYP22 | Copper low smoke zero halogen flame retardant polyolefin insulated and sheathed wire weaving BingBiGang sheathed control cable |
KYYP2-22 | Copper low smoke zero halogen flame retardant polyolefin insulated and sheathed copper belt BingBiGang belt sheathed control cable |
Note: the basic model of insulation and sheath and YDJ low smoke zero halogen flame retardant crosslinked polyolefin | |
