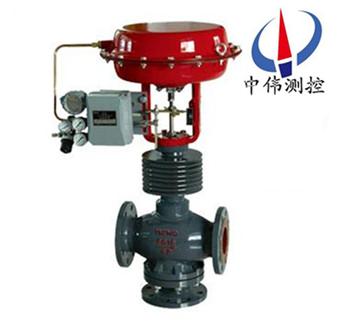

Pneumatic Film Three-way Confluence and Shunt-off Regulating Valve
Pneumatic thin-walled window-shaped spool guide is used in the three-way flow and shunt control valv…
Description：
A, use: ZJHQ, ZJHX seriesPneumatic diaphragm three confluence, shunt valveThe cylinder shaped valve type thin window guide, the guide bushing is different from the plunger shaped spool.Equipped with multi spring actuator, has the advantages of simple structure, light weight, small volume, convenient disassembly and assembly etc..Widely used in the precise control of the gas and liquid medium in the process such as pressure, flow, temperature, liquid level is maintained at a given value.Suitable for a fluid through a three-way valve into the road or the outflow of both fluid through a three-way valve into the fluid situation. This series of products are three confluence and three shunt two.Nominal pressure PN16, 40, 64; nominal diameter range of DN25 ~ 300.Application of fluid temperature from -60 DEG to +450 DEG C.Leakage standard IV.Flow characteristics are linear, parabolic two. Two,Pneumatic diaphragm three confluence, shunt valveStructural characteristics: The valve body, valve cover: HT200, ZG230, ZG1Cr18Ni9Ti - 450 Valve, valve seat: 1Cr18Ni9Ti Corrugated diaphragm: rubber reinforced polyester fabric Filling material: Teflon, flexible graphite Spring: 60Si2Mn Cover: A3 The stem and push rod: 2Cr13, 1Cr18Ni9Ti Lining: 2Cr13 Gasket: asbestos rubber sheet, asbestos gasket, 1Cr18Ni9Ti Three,Pneumatic three-way mixing, shunt valveTechnical parameters:
Cast iron, cast steel and cast stainless steel is less than or equal to 150 is less than or equal to 200
The signal range of Pr (kPa)
From 20 to 100
The air pressure Ps (MPa)
From 0.14 to 0.4
Allowable leakage l/h
10-4 * valve rated capacity
Allowable differential pressure P (MPa)
Zero point eight six
Zero point seven five
Zero point four eight
Zero point three one
Zero point two seven
Zero point one eight
Zero point one one
Zero point one two
Zero point zero nine
Zero Point Zero Five
Zero point zero four
Zero point zero two
Design selection and ordering matters: 1, product type and name; 2, the nominal diameter of DNmm; 3, the nominal pressure; 4, flow characteristics; 5, the body material and trim materials; 6, medium type and temperature range; 7, valve and pressure (pressure difference); 8, seal form; 9, accessories.
