The trough bridge is a fully enclosed cable bridge with cover plate and minimum quantified connectin…
Description：

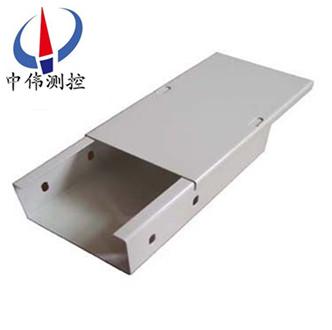

The trough type bridge Is a fully enclosed type cable tray, a cover plate, the connecting bolts using the minimum quantization, it is most suitable for laying computer cable, communication cable, thermocouple cable and other highly sensitive system control cables, cable to control cable shielding interference and heavy corrosion environment protection in the structure has good effect, beautiful high strength, convenient installation.
The trough type bridge The selection of the parameter list:
XQJ-C-1A straight trough
General level of XQJ-C-2A
The level of XQJ-C-3A three
The level of XQJ-C-4A four
XQJ-C-4B vertical diameter four
XQJ-C-06A, B, C, D reducers
XQJ-C-3G vertical diameter three
XQJ-C-3B vertical diameter three
XQJ-C-3C vertical diameter three
XQJ-C-2B vertical diameter elbow
XQJ-C-2C vertical diameter elbow
XQJ-C-2D vertical diameter lower left elbow
XQJ-C-3D above the vertical size of three.
XQJ-C-3E below the vertical size of three.
XQJ-C-3F vertical angle diameter three
XQJ-C-2E vertical diameter lower right elbow
XQJ-C-2F vertical diameter on the left elbow
XQJ-C-2G vertical diameter on the right elbow
The trough type bridge The type and the choice of varieties: Cable network 1, shielding electrical interference or external protection (such as: a corrosive liquid Hugh, flammable dust and other environmental effects) requirements, should choose the groove type composite type anti-corrosion shielding cable tray (with cover) 2, strong corrosive environment should be used (F) composite anti-corrosion epoxy resin flame retardant type cable tray.The bracket will choose the same material, improve the service life of the bridge and annex, cable trays in dirt and other environmental or outdoor venues should be covered with cover. 3, in addition to the above, according to the requirements of site environment and technology selection of tray type, channel type, ladder type, corrosion retardant glass or steel cable tray type bridge.In the dirt and other environmental or outdoor venues should be covered with cover. 4, in the public channel or outdoor road across the bottom, bottom plate or cascade should add in the tray.Large span across the public channel, according to the requirements of users can load or choose the frame groove bridge improvement. 5, large span (>3m) to use composite bridge. 6, outdoor to use epoxy resin composite bridge.
Shield groove bridge with groove matching supply, other accessories and ladder type, pallet bridge general.Other specifications if users need trough cable tray to map a letter or Mianqia order
